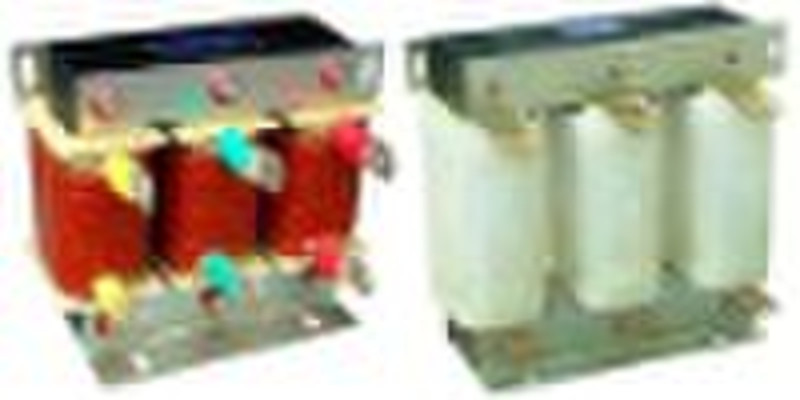

the high-performance/ AC Input Reactors&AC Out

Produt Introduction: 1/Obvious interference to other devices from power supply (such as interference, overvoltage) 2/Interphase voltage is unbalanced >1.8% of rated voltage 3/Low impedance line (Power transformer is about 10 times of rated data of inverter) 4/Large quantity of inverter mounted on the same power line but have to minimize line current 5/power factor calibrating capacitor or power factor correcting unit applied Technical Specification: 1/High quality silicon steel core, core columns evenly divided by the number of small air-gap, gap high-temperature high-strength adhesive glue to the core columns in each subparagraph and the upper and lower yoke tightly bonded together, core end high-quality anti-rust paint spraying process, solve the reactor core surface rust problem. In the operation greatly reduces the noise and vibration; 2/Reactors are used vacuum dipping process, through high temperature bake curing. Coil has good insulating properties, the overall mechanical strength, good moisture resistant; 3/Coil with F, H grade insulation system, which greatly improved theReduce the harmonic content Technical Data: Rated Voltage: φ3/380V/50Hz or 660V/50Hz or1140V/50Hz Rated operating current: 3A to 2000A@40°C Reactive Strength: Core- Winding 3000VAC/50Hz/10mA/10S Free of arcing breakage (tested in factory) Insulation Resistance: 1000VDC,insulation resistance≥100MΩ Reactor’s noise is less than 65dB(to be measured at the point 1 meter away from the reactor horizontally) Protection class: IP00 Insulation class: Above F Standard: IEC289: 1987 Reactor GB10229-88 Reactor (equivalent to IEC289:1987) JB9644-1999 Reactor for semi-conductor transmission Type Sign:
